Business BoostersWideband -10 dB Tap 600-4,000 MHz (50 Ohm) / 859119

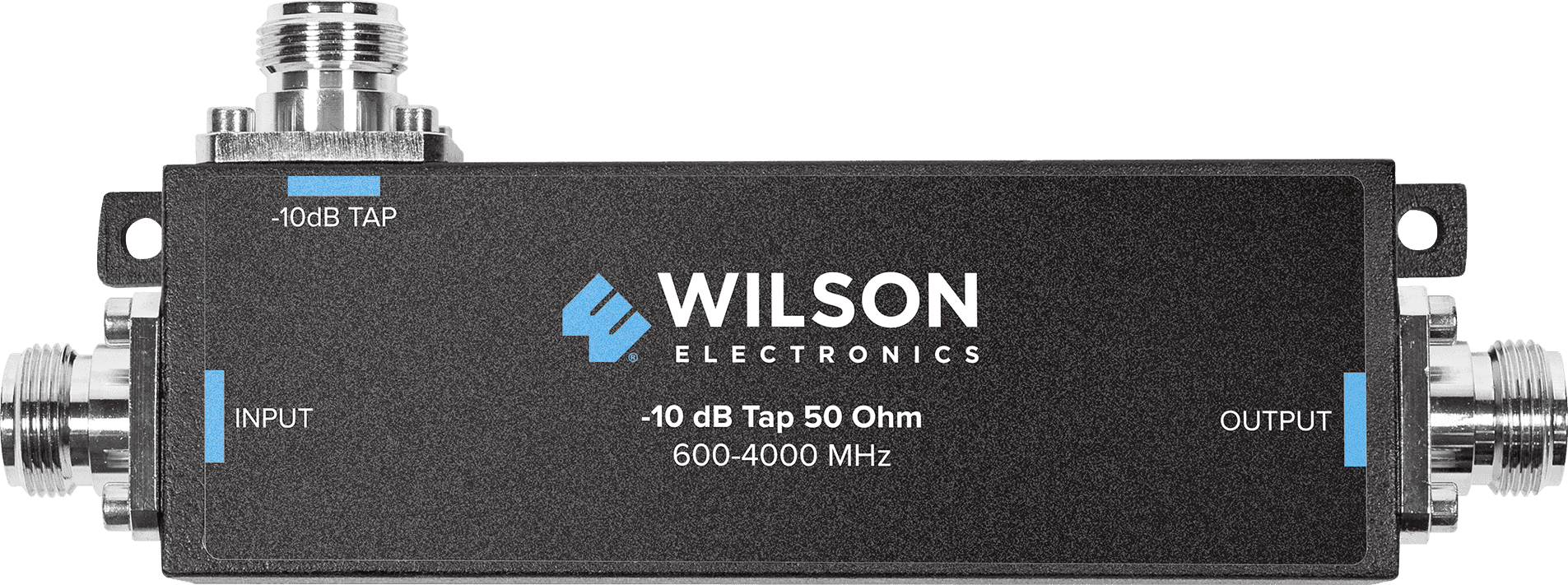

Wideband -10 dB Tap 600-4,000 MHz (50 Ohm)

  • Wideband tap, 50 Ohm with N-Female connectors. Used with WilsonPro cellular repeaters to split a signal unequally, so that 2 antennas can have similar power with uneven cable runs. Allows the antenna which will be used closer to the repeater to receive the greater cable loss, reserving more signal power to be diverted to the antenna located farther from the repeater.

    • Required in order to add C-Band antennas and repeaters to an existing system
    • Compatible with frequencies from 600 to 4,000 MHz
    • C-Band, T-Mobile band 71, and Pro 710i compatible
    • -10 dB tap port and -0.5 dB passthru port
    • Low insertion loss and low VSWR

    Note: for users requiring current or future C-Band support, C-Band antennas, splitters, and taps must be used.

WeBoost solutions work with any device, on any network.

  • bell logo
  • rogers logo
  • sasktel logo
  • telus logo

Why buy
weBoost?

  • 01

    We invented
    cell signal boosting
    technology.

    Wilson Connectivity (the parent company of weBoost) is the originator of cell signal boosting technology and has led the industry with hundreds of patents over the past 25 years.

  • 02

    Designed, assembled
    and supported
    in the USA.

    All weBoost products are designed, built, tested, shipped and supported from the USA. We employ skilled workers providing hundreds of U.S. families with high-quality jobs.

  • 03

    The very best
    materials and
    quality measures

    Compare weBoost to our competitors. You’ll quickly realize that our materials, design specifications and quality control far exceed anything in the industry.

  • 04

    Certified by the ISED.
    Engineered for supported networks and services.

    weBoost products are CA certified and engineered for the networks, frequencies, and services each product supports. Compatibility varies by product, carrier, device, and service.

  • 05

    Guaranteed or
    your money back.

    We’re confident that weBoost products will meet or exceed your expectations, which is why we offer a 30-day, money-back guarantee. If you’re not satisfied, send it back.

  • 06

    One purchase.
    No weBoost subscription.

    A weBoost system is a one-time hardware purchase with no recurring subscription fees from weBoost. Compatible cellular or satellite service is still required based on the product.

warning icon

Warning: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Wideband -10 dB Tap 600-4000 MHz (50 Ohm)
